60 ppm Tube Filler with 4 Head Filling Nozzle For Toothpaste
Features:
· AT60-4 tube filling and sealing machine is built with high quality whatever in
material and assembly and tested before shipping
· All the parts contact with products are made of high quality polished SS316
· 16 stations for high capacity output
· Conform with Pharmaceutical GMP Standard
· Fully automatic process from tube feeding to output, no artificial contamination
· Siemens PLC and Delta Touch Screen for easy operation
· Piston pump for easy control the fluid filling amount
· Filling accuracy error: < ±0.5 % of volume
· Special Patent Design Hot Gun sealing technology
· Banner photoelectric sensor for high precision track positioning
· Single or dual sided date coding and batch number
· Output: up to 3,600 tubes / hour
· Available with all plastic and laminated tubes and metallic aluminum tubes
| Brand Name: |
ATPACK |
| Model Number: |
AT60－4 |
| Certification: |
CE/UL |
| Place of Origin: |
China |
| Product Name |
AT60－4 |
Application |
Health & Beauty |
| Speed |
60 pieces/min |
Filling Accuracy |
+-0.5-1% |
| Operating Mode |
Intermittent |
Tube Size |
Diameter: 10-50mm
Length: 50-253mm
|
| Standard |
CE/UL |
Packaging Material |
Laminated, Plastic, Composite |

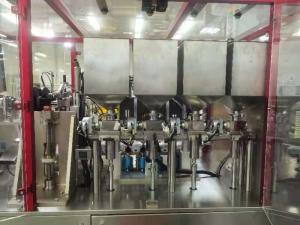

AT60-4 Automatic Tube Filling and Sealing Machine is a high technology machine model, design and used for filling plastic tubes with creams, paste, gels or other similar viscous fluid, then sealing the tubes with special Hot Gun System, other process including tube feeding, photoelectric mark track, date coding, batch number coding, tube trimming and output are all fully automatic. 4 head filling nozzles can fill 4 different material at 4 stations to make tubes looks colorful as transparent plastic tube can show 4 color material.
Working Process:
Manual load tube to container →Automatic tube loading to tube holder → De-dusting →Positioning →Filling 1 to 4 →Melting →Tube Sealing & Coding → Cutting →Output
Applications:
| Personnel care |
Cosmetic, shaving, liquid soap, skin & sun care, hair care, other personnel care, toothpaste |
| Other industry |
Chemistry, food, pharmacy and etc. |
Competitive Advantage:
Stable, reliable and high quality machine which need less service. Very short product and size change over with precise filling accuracy. Easy operate with Siemens HMI providing English, Chinese or other language that is on request. Designed to fill and close all type of tubes available on the market with perfect respect for the product.
